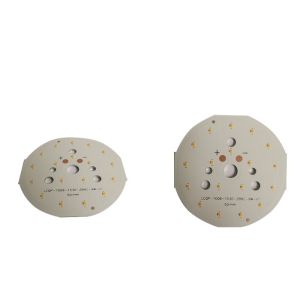

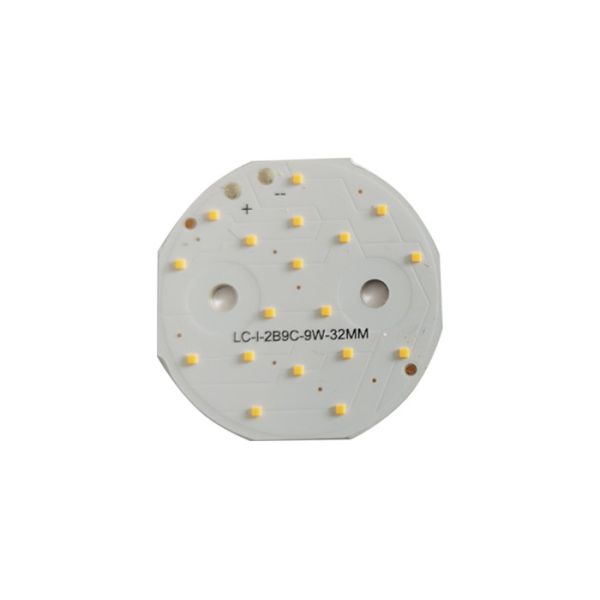

Led Bulb Module 9W RA: 97 Color Temperature(CCT) 4000K
Product Features:
1. Small size, high optical density, low energy consumption.
2. Without gold in process, low malfunction rate.
3. Short process, reduce laber costing and low energy consumption.
4. The be customized, application conveniently.
5. Large luminous Angle, perfect substitute for traditional
incandescent lamp.
Product Parameter:
| Optical Parameter | Value | Panel Parameter | Value |
| Lamp Luminous Flux(lm) | 720lm | Series Parallel Relation | 2 parallel 9 Series |
| Color Temperature(CCT) | 4000K | Electric Current | 0.3A |
| CRI(Ra>) | 97 | Input Voltage(V) | 24V~30V |
| Power | 7.38W | Thermal Conductivity | >2.0W/M.K |
| Lamp Luminous Efficiency(lm/w) | 901Lm/W | Material | A1 panel |
| Model Number: | LHM-2B9CD040-00940A | Brand Name: | Lohua Light Source |
| Lamp bead model: | 0909030-2828-5X-40AA | Application: | Various lighting places |
| Warranty(Years): | 2 years | Place of Origin: | Shenzhen, Guangdong, China |
| CSP size(mm): | 28*28 | Name: | 59W bulb light csp module |
| viewing angel(°): | 150° | LED Light Source: | csp lamp bead |
| Luminous intensity: | 720lm | QTY of LED: | 18pcs |
| LED Type: | 2828 | PCB Thickness: | 1.0mm |
Our Service:
1. We have our own factory, the process is strict and
quality-assured.
2. Some experienced experts and sales team.
3. Various csp lamp bead, include dividual csp.
4. In our light decay laboratory, what we pursue is continuous and
keeps on going.
Application range:
It is widely applied in shopping malls, office buildings, hotels,
exhibition halls, conference rooms, hospitals, windows, household
etc.
Company Introduce:
Jiangsu Lohua New Materials Co., LTD., founded in October 2013,
located in National High
and New Technology Industrial Development Zone of Nantong, is the
first successful
manufacturer of development and production of CSP products and
fluorescent ceramic
products in China. The company has always been based on the LED, a
new generation of
lighting and laser display technology, providing the overall
solution of more high-quality light
emitting materials and light source for the white light. It is a
national high-tech enterprise of
research, development, production, and sales of integration with
sales team in Jiangsu,
Guangdong, Sichuan Province and other places.
