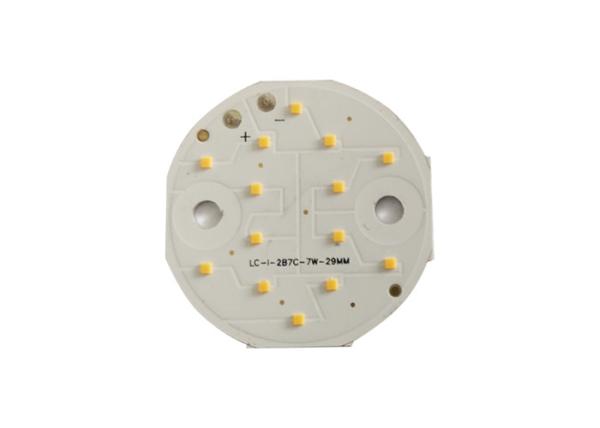

Led Strip Module Bulb Light 6W Color Temperature(CCT) 4000K RA: 97
Product Features:
1. The CSP lamp beads can be customized, application extensive.
2. The RA is 97, which is very close to sunshine.
3. Low thermal resistance, Long lifespan, small size, high optical
density.
4. Six core functions: high light efficiency, long lifespan, low
energy consumption, high quality, no stroboflash, fast heat
dissipation.
Product Parameter:
| Optical Parameter | Value | Panel Parameter | Value |
| Lamp Luminous Flux(lm): | 530lm | Series Parallel Relation: | 2 parallel 7 Series |
| Color Temperature(CCT): | 4000K | Electric Current: | 0.3A |
| CRI(Ra>): | 97 | Input Voltage(V): | 18~24V |
| Power: | 6W | Thermal Conductivity: | >2.0W/M.K |
| Lamp Luminous Efficiency(lm/w): | 901Lm/W | Material: | A1 panel |
| Model Number: | LHM-2B7CD040-00740A | Brand Name: | Lohua Light Source |
| Lamp bead model: | 0909030-2828-5X-40AA | Application: | Various lighting places |
| Warranty(Years): | 2 years | Place of Origin: | Shenzhen, Guangdong, China |
| CSP size(mm): | 28*28 | Name: | 7W bulb light csp module |
| viewing angel(°): | 150° | LED Light Source: | csp lamp bead |
| Luminous intensity: | 530lm | QTY of LED: | 14pcs |
| LED Type: | 2828 | PCB Thickness: | 1.0mm |
| Power Factor: | >0.95 | IP Rating: | 66 |
Our Service:
1. Our own factory, with a overall quality control system.
2. We have patents in CSP, the quality is convinced.
3. With experienced experts, sales team and after-service team.
4. Various csp lamp bead, include dividual csp, easy to use.
Application Range:
It is widely applied in shopping malls, office buildings, hotels,
exhibition halls, conference rooms, hospitals,windows, household
etc.
Company Introduction:
Jiangsu Lohua New Material Co., LTD., founded in October 2013,
located in National High and New Technology Industrial Development
Zone of Nantong, is the first successful manufacturer of
development and production of CSP products and fluorescent ceramic
products in China. The company has always been based on the LED, a
new generation of lighting and laser display technology, providing
the overall solution of more high-quality light emitting materials
and light source for the white light. It is a national high-tech
enterprise of research, development, production, and sales of
integration with sales team in Jiangsu, Guangdong, Sichuan Province
and other places.
